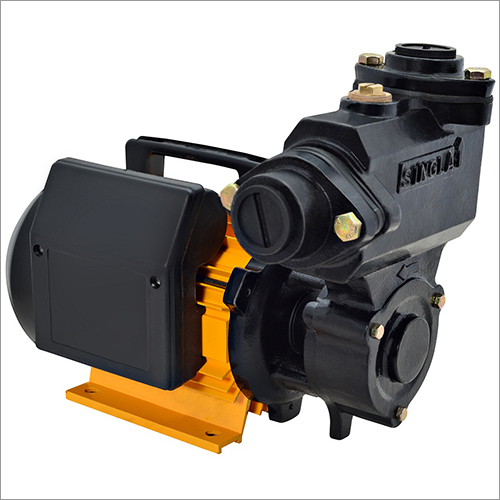

0.5HP Magic Flow (Aluminium body)

Get a Price/Quote

Product Details:

Voltage 220V
Discharge Pressure 2 bar
Working Temperature Up to 60°C
Caliber 25mm
Flow Rate 35 L/min
Speed 2880 RPM
Mounting Type Foot Mounted
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

0.5HP Magic Flow (Aluminium body) Price And Quantity

Minimum Order Quantity 1 Unit

0.5HP Magic Flow (Aluminium body) Product Specifications

Structure Mono Block
Head Size 20m
Standard IS 8472
Theory Centrifugal Pump
Pressure 2 bar
Max Suction 7m
Frequency 50 Hz
Inlet/Outlet 25mm / 25mm
Features Lightweight, Rust Resistant, Easy Installation
Noise Level Low Noise
Application Domestic, Industrial
Control System Manual
Caliber 25mm
Material Aluminium body
Capacity 0.5 HP
Seals Type Mechanical Seal
Power 0.5 HP
Mounting Type Foot Mounted
Usage Water Supply, Irrigation
Speed 2880 RPM
Flow Rate 35 L/min
Pump Type Magic Flow
Fuel Type Electric
Suction Type Single Stage
Priming Self Priming
Voltage 220V
Working Temperature Up to 60°C
Discharge Pressure 2 bar

0.5HP Magic Flow (Aluminium body) Trade Information

Payment Terms Cash in Advance (CID), Cash Advance (CA)
Supply Ability As Per Requirement Months
Main Export Market(s) Middle East, Asia, Africa

Product Description

Regenerative Self Priming Pump (0.5 HP Magic Flow Aluminium body)

SINGLA Regenerative Self Priming Pump sets are made using the state of the art machinery and quality raw material which results in high performance and long product life. Pump volute chambers and impellers are designed to give best hydraulic efficiency. These pump sets are powered by totally enclosed fan cooled two pole motors with stators of the motors are made up of low watt loss lamination and dynamically balanced rotors for higher efficiency. These pump sets are wound with high grade enameled copper wire and are fitted with thermal overload protector.

APPLICATIONS:

Domestic water supply
Minor Irrigation needs
Sprinkler System
Pressure boosting units
Fountains
Ponds and Gardens

SALIENT FEATURES:

Light weight helps in easy installation.
Brass impeller is used to give trouble free service.
Pump casing, adaptor are made of close grained CI of high tensile strength.
Fitted with thermal overload protector (TOP) which prevents motor burning.
Motor windings are vacuum impregnated with synthetic varnish for better moisture resistance.
High quality mechanical seal for effective sealing against water leakage.
Extruded aluminum body is corrosion resistant and helps in better heat dissipation.
Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.

SPECIFICATIONS

Power Range	0.5 HP
Version	180-240V 1Ph 50 Hz
Speed	2880rpm
Flow Rate	Upto 25 lpm
Head Range	Upto 25 meters
Outlet size in inches	1"
Inlet size in inches	1"
Degree of Rotation	CCW, CW 1 Ph
Type of duty	S1 (Continuous)

MOC

PART NAME	MATERIAL
Impeller	HT Brass
Delivery Casing	Cast Ironn (FG-200)
Adaptor Motor Body	Extruded Aluminium
Shaft Seal	Carbon-Graphite
Pump Shaft	SS410

PUMPED LIQUIDS

Clean, thin non-aggressive, non-explosive, clear, cold, fresh water without abrasives

Efficient Water Management

The Magic Flow 0.5HP pump utilizes centrifugal force for rapid water delivery, making it suitable for both household and industrial settings. Its air-cooled mechanism and thermal overload protector safeguard against overheating, while the mono block structure ensures stable operation. The pump maintains a consistent discharge pressure of 2 bar, ideal for irrigation or water supply tasks.

Durable and User-Friendly Design

Constructed with an aluminium body and brass impeller, the Magic Flow pump delivers excellent resistance to corrosion and rust. Its lightweight form factor allows for easy installation and maintenance, and the mechanical seal provides reliable leak prevention. The low noise output creates a comfortable environment, contributing to smoother operations.

FAQs of 0.5HP Magic Flow (Aluminium body):

Q: How is the 0.5HP Magic Flow pump installed for domestic use?

A: The pump features a foot-mounted design for secure placement. Installation requires connecting the 25mm inlet and outlet to your water supply line and ensuring a stable electric connection at 220V. Self-priming capability simplifies the process, and its lightweight body makes handling easy.

Q: What benefits does the aluminium body and brass impeller provide?

A: The aluminium body ensures the pump is rust-resistant and lightweight, making it easy to transport and install. Brass impellers offer superior durability and help maintain high performance by resisting corrosion during prolonged water contact.

Q: When is the Magic Flow pump ideal for irrigation or industrial applications?

A: This pump is suitable when consistent water flow (35 L/min), moderate pressure (2 bar), and durability are required within working temperatures up to 60C. Its robust build and long service life make it advantageous for both regular domestic irrigation and demanding industrial water transfer.

Q: Where can the Magic Flow centrifugal pump be used effectively?

A: Its versatility allows for use in homes, gardens, small farms, workshops, and in various industrial settings where water supply or pressure boosting is necessary. The pump complies with IS 8472, making it reliable for different Indian environments.

Q: What is the process for maintaining the pump to ensure longevity?

A: Regular maintenance involves inspecting the mechanical seal, ensuring the air-cooling vents are clear, and checking electric connections. The pumps thermal overload protection aids in maintaining a longer service life by preventing damage from overheating.

Q: How does the thermal overload protector benefit the pumps operation?

A: The thermal overload protector automatically shuts off the pump if it overheats, protecting the motor and internal components. This feature significantly reduces the risk of damage and ensures safer, longer-lasting operation.
